Electrical & Civil EPC

33 kV Transmission Line from P/S/S Sikidri

Supply, erection, testing and commissioning of an 8.5 km 33 kV incoming line feeding the food park's substation.

Contract value
₹3.96 crore
Work order
JMFPPL/ELE/0413/01
Location
Sikidri to Getalsud, Ranchi

The incoming feed for the Jharkhand Mega Food Park campus: approximately 8.5 km of 33 kV line run from the Sikidri power substation to the park’s own 33/11 kV substation at Getalsud.

The work was executed under the supervision of the Jharkhand State Electricity Board, which issued its completion certificate vide letter no. 954 dated 21.09.2013. The client subsequently confirmed in writing that the work was completed within the stipulated timeframe and to their entire satisfaction.

From site

Photographs taken during execution. Dates shown are the camera’s own. Select any one to enlarge it.

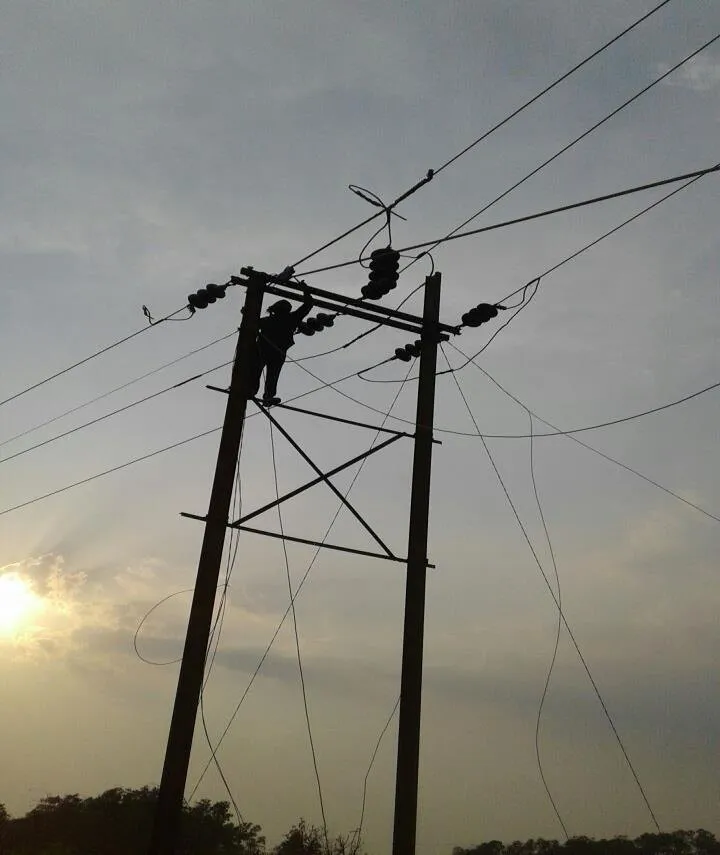

  • A lineman working at the top of an HT pole against a sunset sky

    Conductor work on an HT pole at last light.

Open original

Completion certificate

Issued by Jharkhand Mega Food Park Pvt. Ltd. on completion. Published in full — read it before you take our word for anything on this page.

Completion letter from Jharkhand Mega Food Park for the 33 kV line from SikidriRead

Jharkhand Mega Food Park Pvt. Ltd.

Completion Letter — 33 kV Line

8.5 km 33 kV line from Sikidri, ₹3,96,04,909. JSEB completion certificate issued vide letter 954 of 21.09.2013.

Download PDF

8.5 km, structure by structure

How a 33 kV line gets from survey to charged

Overhead line and lighting along the corridor at dusk

  1. Survey

    Alignment walked and pegged, way-leave settled, and foundation pits opened at every structure position.

  2. Erection

    Structures raised and grouted, cross-arms fitted, and pin and disc insulators mounted.

  3. Stringing

    Conductor run out span by span, then pulled to the specified sag and clamped in.

  4. Charging

    Earthing checked, insulation tested, and the line charged under the utility’s supervision.

Photographed on site

  • Overhead line and lighting along the corridor at dusk
  • Conductor and cable drums delivered to site
